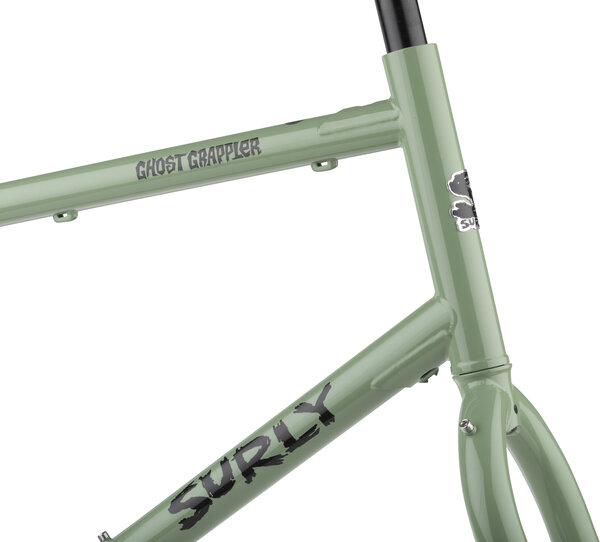

The Grappler is Surly's dedicated drop-bar trail bike. With mountain geo designed around a comfortable, confident drop-bar hand position, it's lively and responsive on single track, double track, and other degraded surfaces. Ready to haul essential gear for all-day dirt rides and quick bikepacking excursions, captured thru-axles front and rear provide ideal stiffness and handling. Built around 27.5" wheels and compatible with internally geared hub and single-speed setups, Surly's tried-and-true Gnot-Boost spacing allows riders to run 142mm or 148mm rear hubs.
- 100% Surly Chromoly steel frame and fork, featuring Surly's proprietary 'Natch tubing, double-butted main triangle, 1-1/8" headtube, non-suspension corrected.
- Horizontal-slotted dropout, Surly Gnot-Boost spacing.
- Seat stay mounted bottle bosses on all sizes except XS, plus three-pack mounts at the top and bottom of the down tube and stealth dropper post routing.
- E.D. coated frame for increased life expectancy.
- 27.5 x 2.8" tire clearance (with or without fenders).
|Seat Tube Length (mm)||316||386||437.2||488||539|
|Top Tube Length (Effective) (mm)||560||590||610||640||660|
|Head Tube Angle||69.5°||69.5°||69.5°||69.5°||69.5°|
|Seat Tube Angle||73.0°||73.0°||73.0°||73.0°||73.0°|
|BB Drop (mm)||50||50||50||50||50|
|Chainstay Length (mm)||425||425||425||425||425|
|Standover Height (mm)||719||762||796||830||863|
|Head Tube Length (mm)||160||180||200||220||240|
|Fork Length (mm)||420||420||420||420||420|
|Fork Rake (mm)||50||50||50||50||50|
|Stem Length (mm)||60 or 70mm||60 or 70mm||60 or 70mm||60 or 70||60 or 70|
|Handlebar Width (mm)||400||420||440||460||480|
|Crank Length (mm)||170||170||175||175||175|
WARNING: Cycling can be dangerous. Bicycles and bicycle products should be assembled and serviced by a professional mechanic. Never modify your bicycle or accessories. Read and follow all product instructions and warnings including information on the manufacturer’s website. Inspect your bicycle before every use. Always wear a helmet.
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
|Frame||100% Chromoly Steel frame, Natch tubing, double-butted main triangle, TIG welded, E.D. coated|
|Fork||100% Chromoly Steel fork, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated|
|Bottom Bracket||Samox BSA 24|
|Brakes||Disc - 51mm I.S. (203mm max rotor)|
|Seatpost||TransX YSP15, 30.9, 100mm travel|
|Accessories & Extras||Internal dropper post routing, Bottle Mounts Frame: 3-pack mounts on upper and lower downtube; seat tube bottle mounts on frame sizes S–XL, Bottle Mounts Fork: 3-pack mounts on each fork blade, Frame and Fork rack mounts|
* Subject to change without notice.
|Sage Green / X-Small||708752361300||FM1160|
|Sage Green / Small||708752361324||FM1161|
|Sage Green / Medium||708752361348||FM1162|
|Sage Green / Large||708752361362||FM1163|
|Sage Green / X-Large||708752361386||FM1164|
